Australian manufactured weld mesh.
Weld Mesh AL-TEN 4mm- Gabion Kitsets 4mm (75 x 75 pitch)
- Gabion Kitsets 4mm (100 x 50 pitch)
- Gabion Panels 4mm (75 x 75 pitch)
- Gabion Panels 4mm (100 x 50 pitch)
Weld Mesh AL-TEN 5mm- Gabion Kitsets 5mm (75 x 75 pitch)
- Gabion Panels 5mm (75 x 75 pitch)
Al-Ten kitsets come complete with accessories.
Gabion Polymer Coated WovenTools & Accessories
Gabion Weld MeshAustralian manufactured weld mesh with a 300gsm coating of 10% Aluminium and 90% Zinc.
Gabion Polymer Coated WovenMaccaferri polymer coated gabion and accessories.
-
Weed MattingGeotextile (nonwoven)Geotextile (woven)Accessories
Weed Matting110gsm premium weed matting, manufactured to the highest possible quality.
Geotextile (woven)Primary Applications: soil separation and reinforcement for paved or unpaved roads, access roads, farm gateways, forest roads.
Geotextile (nonwoven)Primary Applications: drainage, soil separation for retaining walls, stabilisation and reinforcement for paved or unpaved roads, erosion control.
AccessoriesGround staples (weed mat U pins in sharpened gal coated 4mm), butterfly Permaclips.
-
Root BarrierBentonite Sodium Civil Engineering Grade
Root BarrierRoot barrier is Australian manufactured to AST D1599/1505. Available in 1mm, 2mm and 3mm.
Bentonite Sodium Civil Engineering GradeCivil enginerring grade bentonite, used for a variety of applications including as a root barrier at the base of trenches, sealing earth dams, drilling.
-
Drainage & Pavers
Versi 8mm Drainage BoardDimpled sheeting with geotextile backing ideal for basement walls.
Hexcell drainage modulesModular drainage manufactured in HDPE. 30mm thickness. Provides a non-clogging void between building structure for the efficient discharge of water.
Megaflo & AccessoriesMegaflo drainage coil and accessories for 170mm and 300mm Megaflo.
Grass PaversGeohex soil erosion control and surface stabilisation paver. Made in Australia.
-
Geomembrane TapesGeomembranesFasteners & ToolsAccessories
Geomembrane TapesVulcanseal G-25 is a UV stabilised single sided adhesive tape designed for geomembrane joins and patches. Vulcanseal 609 is a double sided polyisobutylene tape.
Fasteners & ToolsFasteners and tools including hog rings, hog ringers, Nikolock, U Clips.
AccessoriesGround Staple Pins for weed mat and geofab, butterfly clips for shadecloth

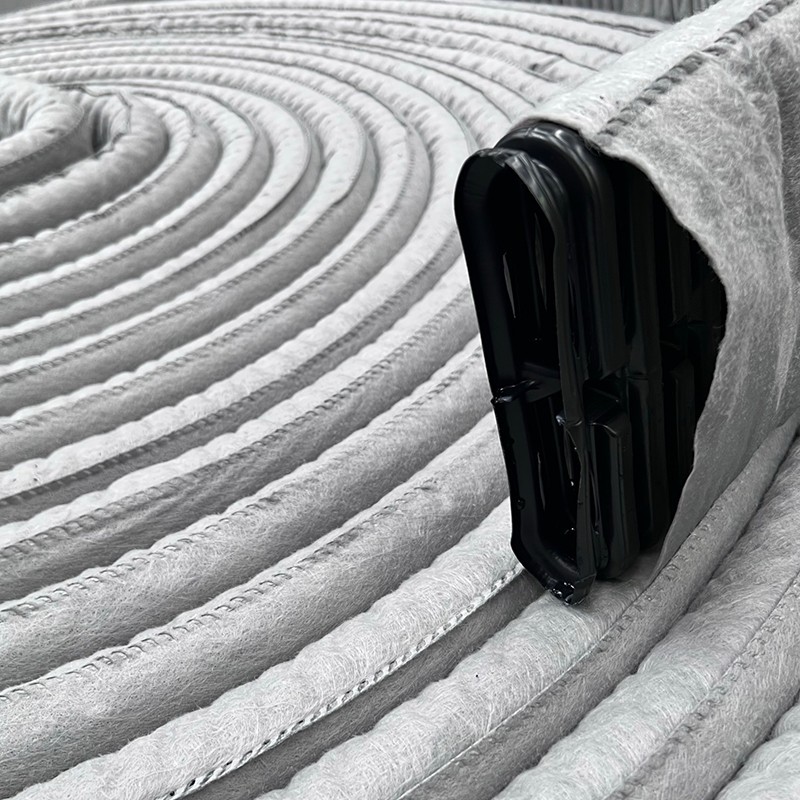

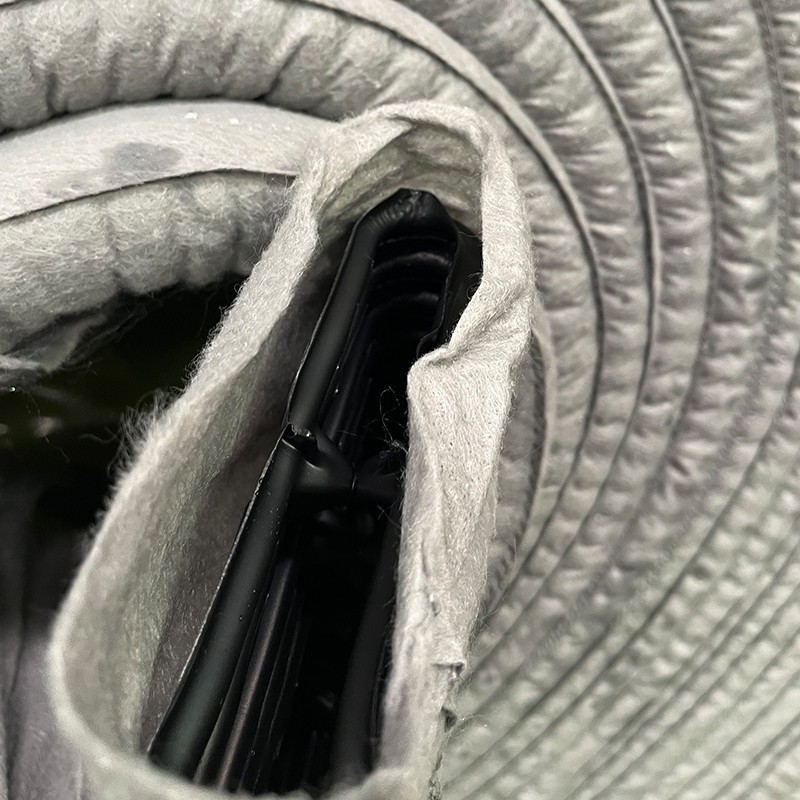

Megaflo Green 170mm x 25m
Megaflo Green 170mm x 25m is a flat panel subsoil drain supplied in a 25 m length. Its 170 mm profile delivers high inflow capacity while requiring a narrow trench for faster installation.
Megaflo Green 170mm x 25m
$176.14
Tax included
15Megaflo170.25
Megaflo Green 170mm x 25m is a flat panel subsoil drain supplied in a 25 m length. Its 170 mm profile delivers high inflow capacity while requiring a narrow trench for faster installation.
Megaflo Green 170mm x 25m is a high‑capacity flat panel drain for efficient subsoil water management. The 170 mm profile provides a large inflow area while maintaining a slim trench footprint to help reduce excavation and spoil.
Use it beneath sports fields and golf courses, along roadways and embankments, behind retaining walls, and in landscaping projects where rapid subsurface drainage is required.
Compared with traditional round slotted pipe, the panel design promotes fast collection and conveyance of water at shallow grades. The 25 m length helps reduce joints, and the flexible form handles gentle curves. Compatible with common connectors and outlets (sold separately).
Install to the specified grade on a firm base, surround with clean, free‑draining aggregate, and use geotextile separation where required to limit fines migration. Connect to collector drains or sumps as per design and local practice.
Size: 170 mm profile x 25 m length. Applications and installation details vary by project—consult relevant specifications or an engineer for final design.
15Megaflo170.25
Data sheet
- Width
- 40mm
- Height
- 170mm
- Slot Size
- 2.8mm x 30mm (ASTM D2122)
- Compressive Strength
- Greater than 200 kPa (ASTM D2412)
- Geotextile Wrapped
- Yes
Specific References
- EAN13
- 9352845006565
