Gabion 500mm L x 500mm W x 1000m H, 100x50mm, AL-TEN
Durable gabion basket measuring 500 x 500 x 1000 mm with a 100 x 50 mm mesh aperture. AL-TEN aluminium‑zinc alloy coating provides long-lasting corrosion resistance for retaining walls, columns, and landscaping features.
Gabion 500mm L x 500mm W x 1000m H, 100x50mm, AL-TEN
Previous
Gabion 500mm L x 500mm W x 500mm H, 100x50mm, AL-TEN
Next
Gabion 1000mm L x 500mm W x 500mm H, 100x50mm, AL-TEN
$87.75
Tax included
GABKITSET2002S2
Durable gabion basket measuring 500 x 500 x 1000 mm with a 100 x 50 mm mesh aperture. AL-TEN aluminium‑zinc alloy coating provides long-lasting corrosion resistance for retaining walls, columns, and landscaping features.

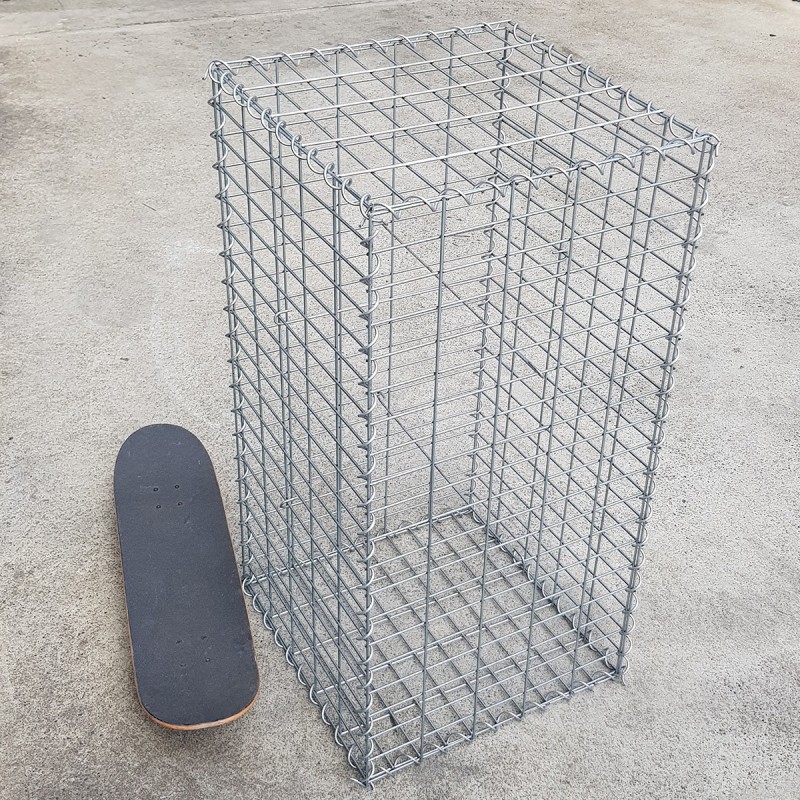

This robust gabion basket measures 500 mm (L) x 500 mm (W) x 1000 mm (H) and features a 100 x 50 mm rectangular mesh aperture for secure stone retention and a clean, architectural look.
Made from steel wire with an AL-TEN aluminium‑zinc alloy coating, it offers enhanced corrosion resistance compared to standard galvanizing, supporting long service life in a wide range of environments.
Use it for slimline retaining structures, freestanding garden columns, boundary accents, cladding, or small-site erosion control. The compact footprint suits tight spaces and modular builds.
For best results, install on a firm, level base. Assemble and brace as required, then fill with hard, durable rock sized appropriately to the mesh aperture to ensure stability and a tidy face.
The permeable structure reduces hydrostatic pressure and promotes drainage, helping maintain wall performance while delivering a natural stone finish.
GABKITSET2002S2
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 100mm x 50mm (rectangular)
- Length
- 500mm
- Width
- 500mm
- Height
- 1000mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.25
- Weight with rock (approx)
- 450 kg
- Supplied As
- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845000181
