Gabion 1950mm x 975mm x 975mm H, 75x75mm, AL-TEN
Heavy-duty gabion basket sized 1950 x 975 x 975 mm with 75 x 75 mm mesh. AL-TEN aluminium-zinc coated steel offers enhanced corrosion resistance for walls, landscaping and erosion control.
Gabion 1950mm x 975mm x 975mm H, 75x75mm, AL-TEN
Previous
Gabion 1500mm x 975mm x 975mm H, 75x75mm, AL-TEN
Next
Gabion 1950mm x 975mm x 1200mm H, 75x75mm, AL-TEN
$285.80
Tax included
GABKITSET2040S
Heavy-duty gabion basket sized 1950 x 975 x 975 mm with 75 x 75 mm mesh. AL-TEN aluminium-zinc coated steel offers enhanced corrosion resistance for walls, landscaping and erosion control.

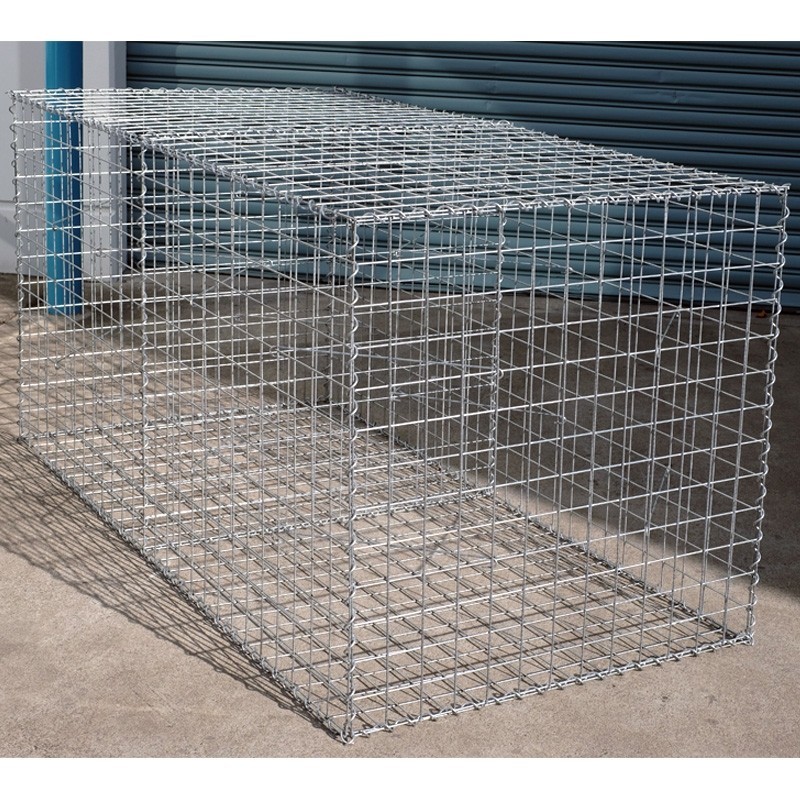

This robust gabion basket measures 1950 x 975 x 975 mm (H), suited to retaining walls, landscape features and erosion control. The 75 x 75 mm square mesh provides reliable stone retention and a clean, uniform finish.
Constructed from steel wire with an AL-TEN (aluminium-zinc) corrosion-resistant coating, it delivers long-term durability in outdoor environments. The coating offers improved performance compared to standard galvanised finishes.
For best results, fill with hard, angular rock typically 100–200 mm to minimise bulging and ensure a tight, stable structure. For soil-retaining uses, prepare a level, compacted base and incorporate drainage and a suitable geotextile behind the basket to prevent soil migration.
The 1950 x 975 x 975 mm format integrates easily with adjacent modules for stepped or stacked walls. Suitable for residential and commercial projects including garden walls, noise bunds, culvert headwalls and decorative cladding.
GABKITSET2040S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 1950mm
- Width
- 975mm
- Height
- 975mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 1.94
- Weight with rock (approx)
- 3492 kg
- Supplied As

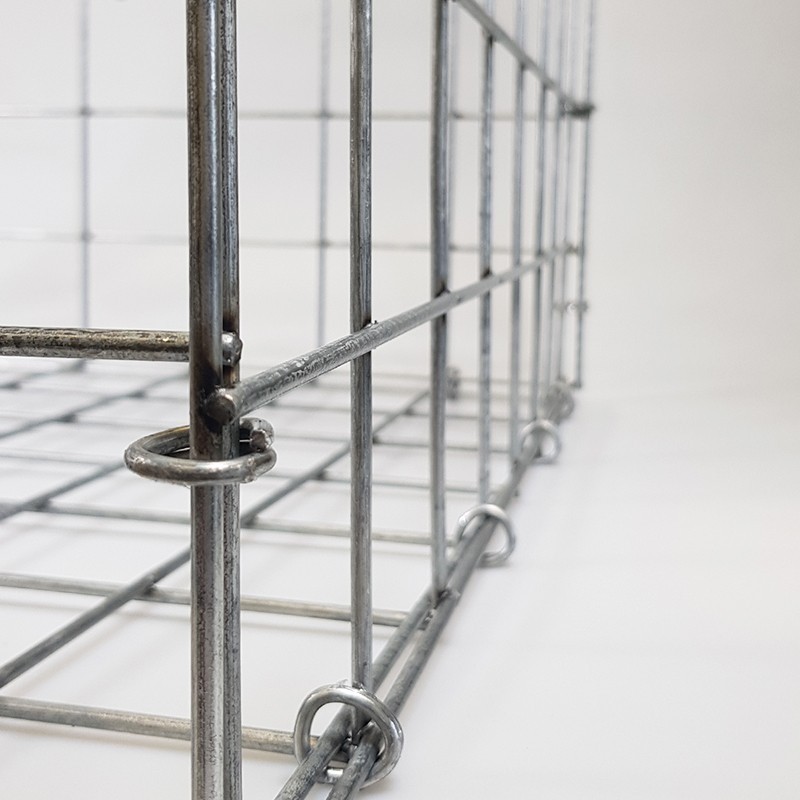

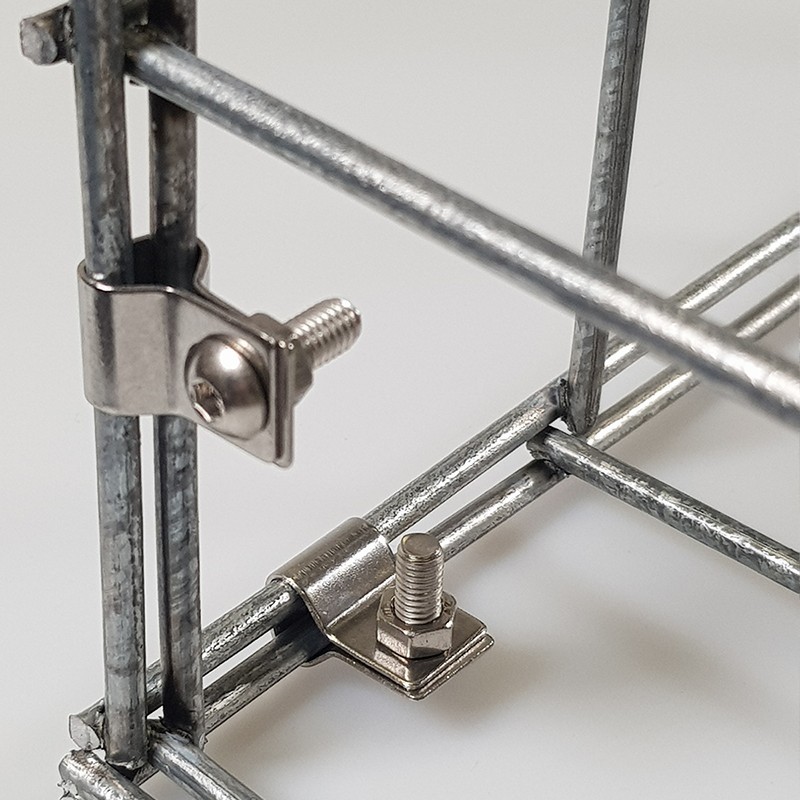

- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845000150
