Gabion 1500mm x 525mm x 525mm H, 75x75mm, AL-TEN
Durable gabion basket for retaining walls, erosion control, and landscape features. 1500 x 525 x 525 mm with 75 x 75 mm mesh in AL-TEN coated steel for corrosion resistance. Internal capacity approx. 0.41 m³.
Gabion 1500mm x 525mm x 525mm H, 75x75mm, AL-TEN
Previous
Gabion 1500mm x 525mm x 300mm H, 75x75mm, AL-TEN
Next
Gabion 1500mm x 525mm x 975mm H, 75x75mm, AL-TEN
$126.15
Tax included
GABKITSET2014S
Durable gabion basket for retaining walls, erosion control, and landscape features. 1500 x 525 x 525 mm with 75 x 75 mm mesh in AL-TEN coated steel for corrosion resistance. Internal capacity approx. 0.41 m³.

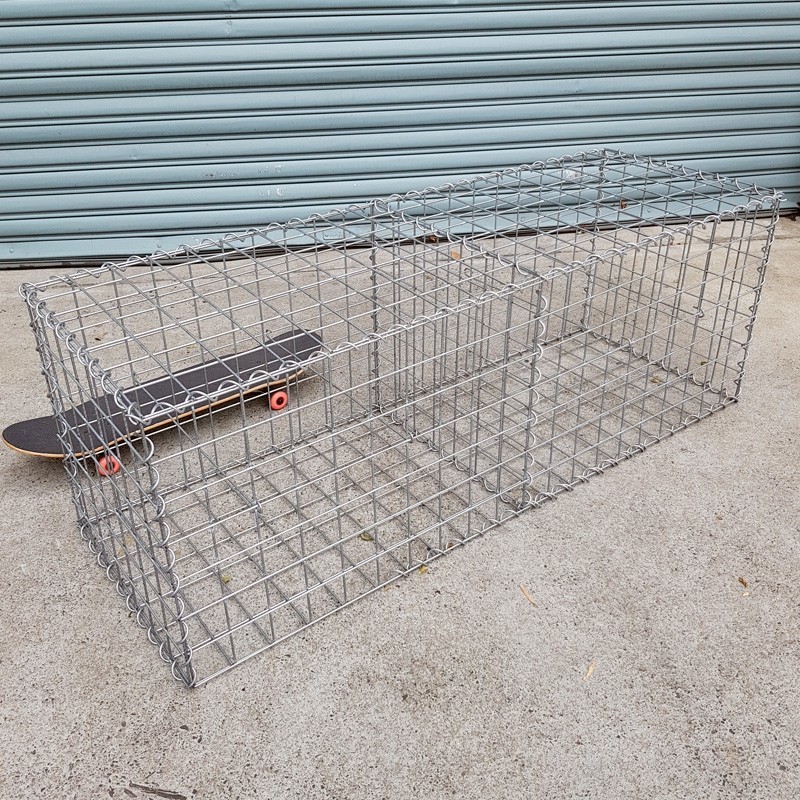

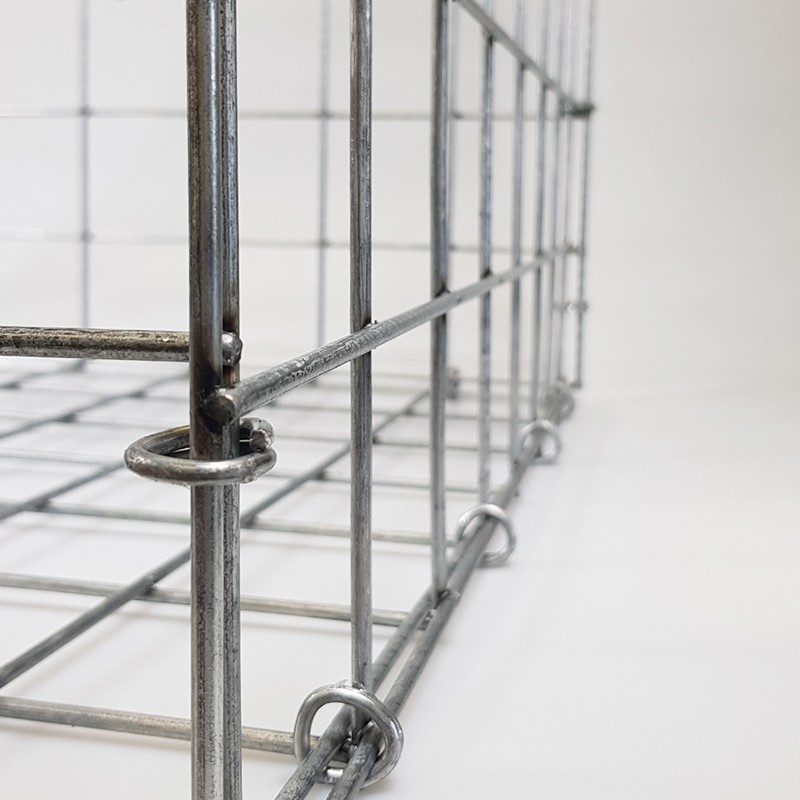

This modular gabion basket measures 1500mm (L) x 525mm (W) x 525mm (H) with a 75 x 75mm mesh aperture. Made from AL-TEN coated steel for strong corrosion resistance, it’s designed for long-term performance outdoors.
When filled with quality rock and correctly braced, it forms stable retaining structures, erosion control solutions, and attractive landscape features. The 75mm aperture helps retain stone securely while allowing good drainage.
Internal volume is approximately 0.41 m³. Select hard, angular rock larger than the mesh opening for a tight, durable face. Combine multiple units to build longer walls or terraced sections.
Install on a level, compacted base and use suitable lacing/spirals and internal bracing as required. For soil-retaining applications, include drainage and, where appropriate, a geotextile separator behind the wall.
GABKITSET2014S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 1500mm
- Width
- 525mm
- Height
- 525mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.418
- Weight with rock (approx)
- 753 kg
- Supplied As

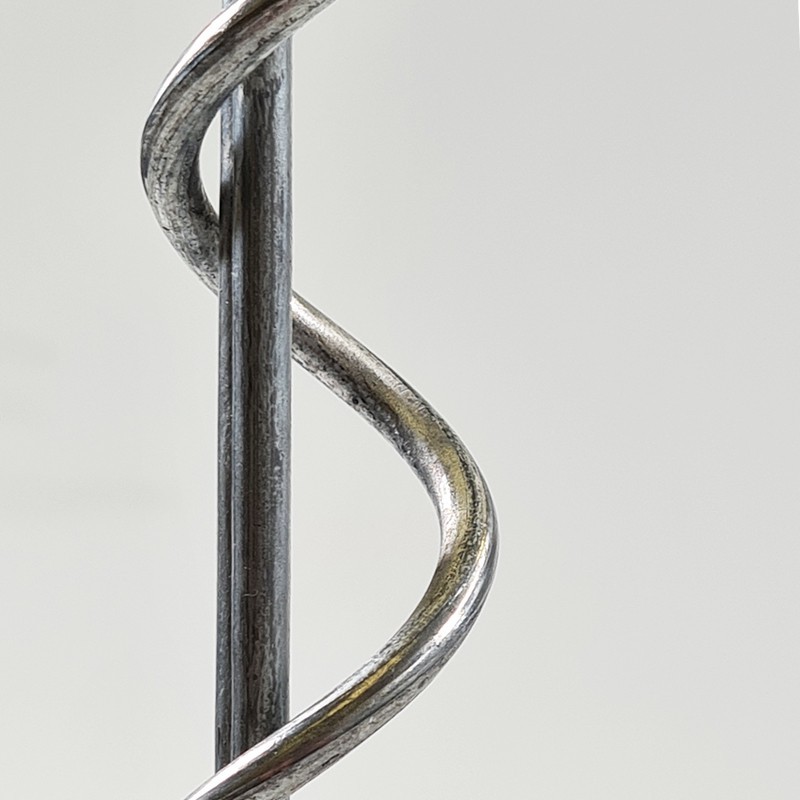

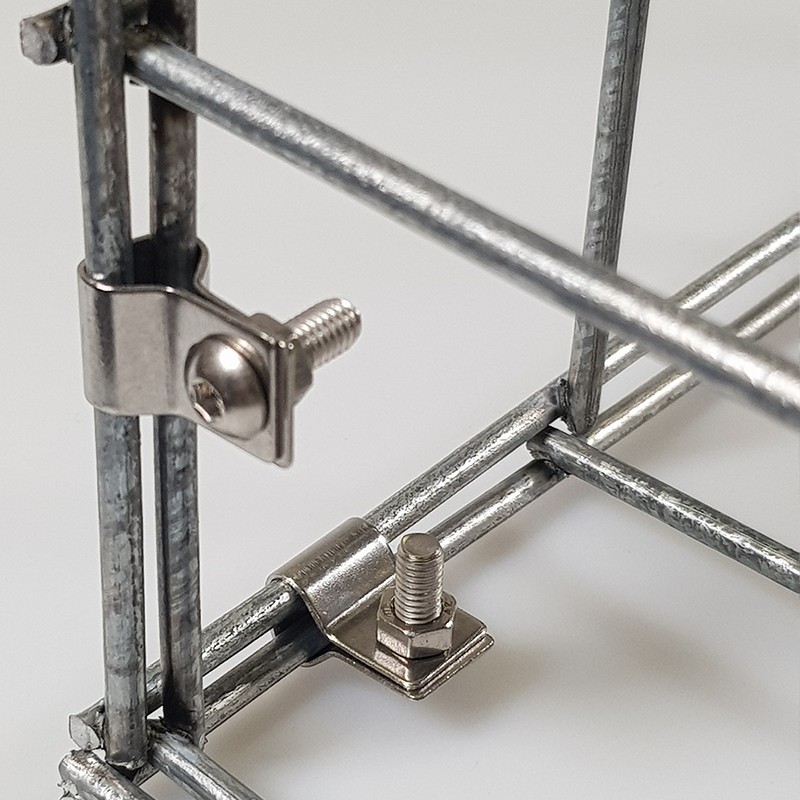

- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845001102
