Gabion 975mm x 975mm x 750mm H, 75x75mm, AL-TEN

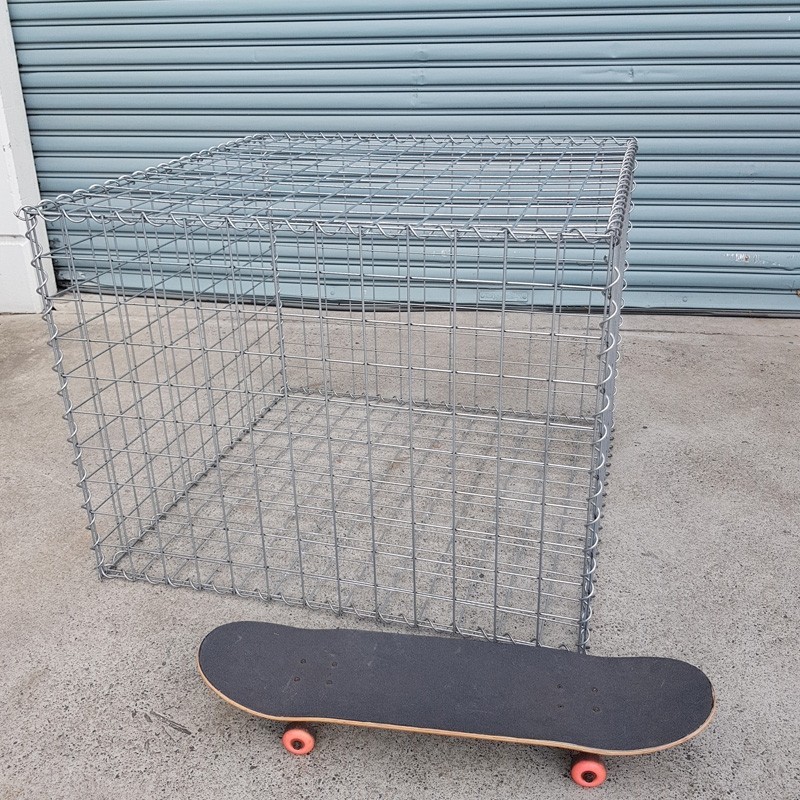

Robust AL-TEN gabion basket measuring 975 x 975 x 750 mm high with 75 x 75 mm mesh. Ideal for retaining walls, landscaping features, and erosion control, ready to be filled on site with suitably sized stone.
Gabion 975mm x 975mm x 750mm H, 75x75mm, AL-TEN
Previous
Gabion 975mm x 975mm x 525mm H, 75x75mm, AL-TEN
Next
Gabion 975mm x 975mm x 975mm H, 75x75mm, AL-TEN
$152.28
Tax included
GABKITSET2077S
Robust AL-TEN gabion basket measuring 975 x 975 x 750 mm high with 75 x 75 mm mesh. Ideal for retaining walls, landscaping features, and erosion control, ready to be filled on site with suitably sized stone.
This heavy-duty gabion basket measures 975 x 975 x 750 mm (H) and features a 75 x 75 mm mesh aperture, providing a neat, stable face once filled. Use as a standalone feature or combine multiple units for retaining walls, planters, benches, and erosion control.
Constructed from alloy-coated steel wire (AL-TEN), it offers strong corrosion resistance and dependable performance in outdoor environments. The 75 x 75 mm grid helps retain rock securely while showcasing a clean stone finish.
Install on a level, well-compacted base and fill on site with angular stone sized to exceed the mesh aperture for best interlock. The modular format makes alignment, stacking, and integration with other gabions straightforward.
Approximate internal volume is 0.71 m3; use this as a guide when estimating stone quantities. For structural or engineered applications, seek project-specific design advice.
GABKITSET2077S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 975mm
- Width
- 975mm
- Height
- 750mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.717
- Weight with rock (approx)
- 1291 kg
- Supplied As

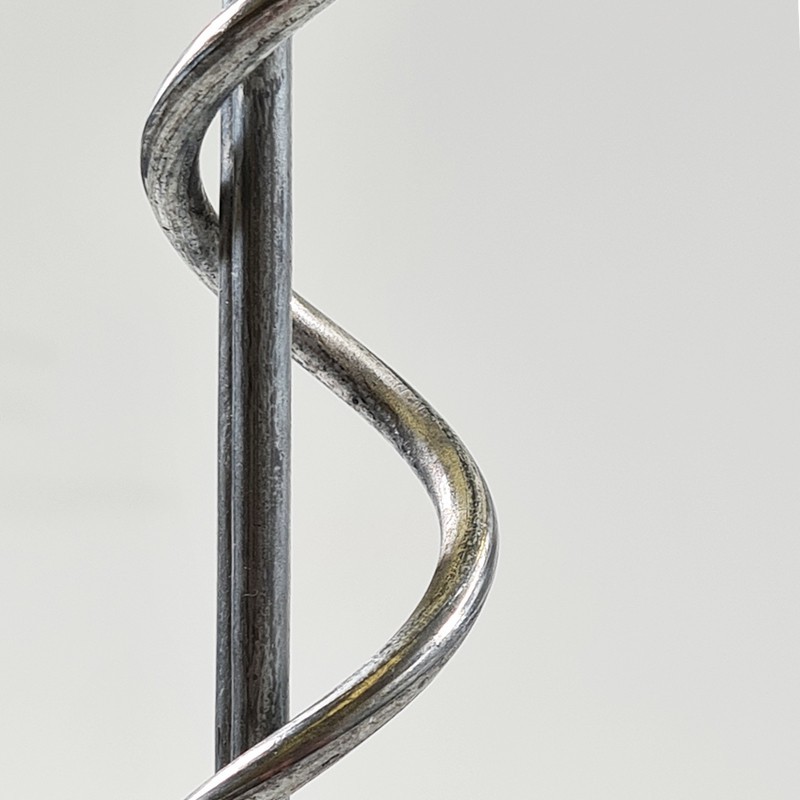

- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845001744
