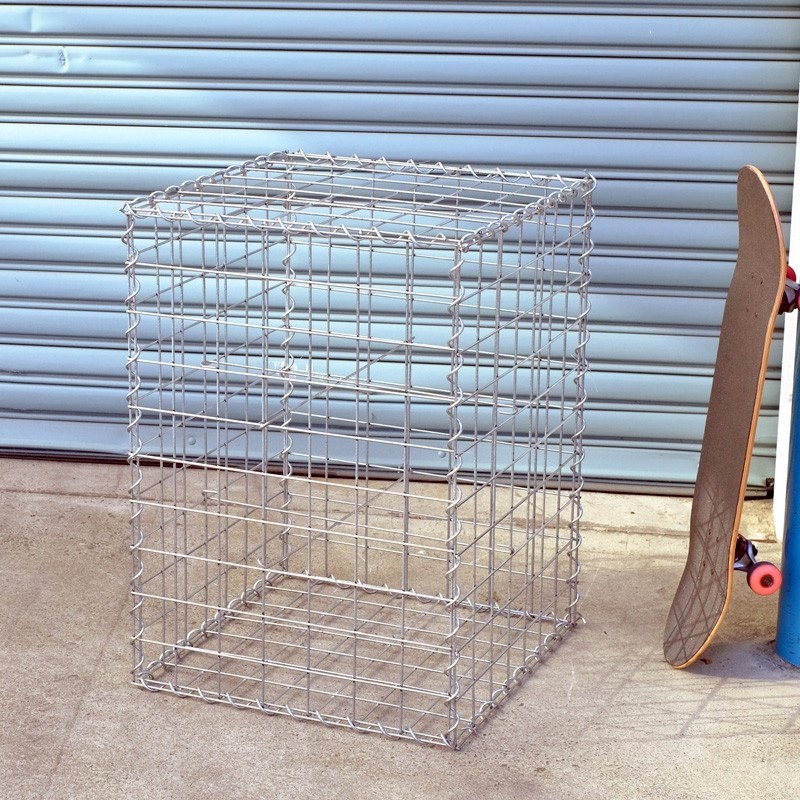

Gabion 525mm x 525mm x 750mm H, 75x75mm, AL-TEN
Compact square gabion 525mm x 525mm x 750mm high with 75x75mm mesh. AL-TEN coated wire provides durable, corrosion-resistant performance for columns, low walls and landscape features.
Gabion 525mm x 525mm x 750mm H, 75x75mm, AL-TEN
Previous
Gabion 525mm x 525mm x 525mm H, 75x75mm, AL-TEN
Next
Gabion 525mm x 525mm x 975mm H, 75x75mm, AL-TEN
$81.95
Tax included
GABKITSET2063S
Compact square gabion 525mm x 525mm x 750mm high with 75x75mm mesh. AL-TEN coated wire provides durable, corrosion-resistant performance for columns, low walls and landscape features.
This compact square-profile gabion measures 525mm x 525mm with a 750mm height and a 75x75mm mesh aperture. Manufactured from AL-TEN coated wire for enhanced corrosion resistance and long service life.
Ideal for slim columns, low retaining sections, garden edging, mailboxes and feature walls, it delivers a clean, architectural look. The open mesh allows natural drainage, helping to reduce hydrostatic pressure behind structures.
The 75mm aperture provides secure stone retention while showcasing the infill. Combine units side-by-side or stack to build modular layouts and consistent alignments across your project.
For best results, place on a level, well-compacted base and fill evenly with suitably graded, angular stone. Square and brace during filling to maintain shape and achieve tight, uniform faces.
GABKITSET2063S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 525mm
- Width
- 525mm
- Height
- 750mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.188
- Weight with rock (approx)
- 329 kg
- Supplied As
- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845001867
