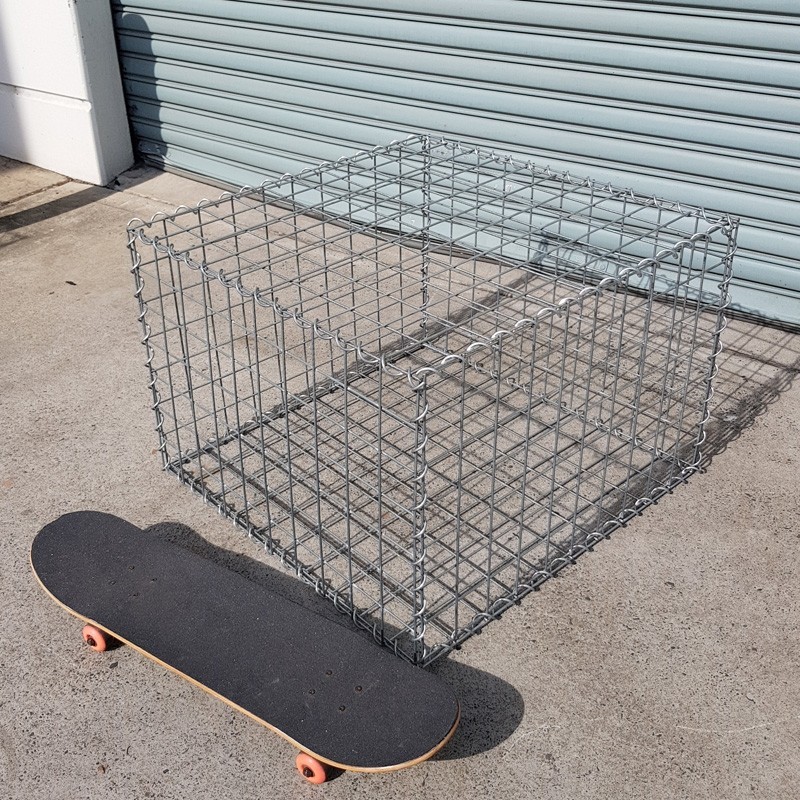

Gabion 750mm x 750mm x 525mm H, 75x75mm, AL-TEN
Compact welded mesh gabion basket measuring 750 x 750 x 525 mm (H) with a 75 x 75 mm aperture. AL-TEN alloy-coated wire offers durable, corrosion-resistant performance for landscaping and small retaining projects.
Gabion 750mm x 750mm x 525mm H, 75x75mm, AL-TEN
Previous
Gabion 750mm x 750mm x 300mm H, 75x75mm, AL-TEN
Next
Gabion 750mm x 750mm x 750mm H, 75x75mm, AL-TEN
$100.40
Tax included
GABKITSET2028S
Compact welded mesh gabion basket measuring 750 x 750 x 525 mm (H) with a 75 x 75 mm aperture. AL-TEN alloy-coated wire offers durable, corrosion-resistant performance for landscaping and small retaining projects.
This compact welded mesh gabion measures 750 x 750 x 525 mm (H) with a 75 x 75 mm aperture, ideal for space-efficient structures. The AL-TEN alloy-coated wire provides strong corrosion resistance for long-term outdoor use.
Use as a low retaining edge, planter base, seating block, feature column, or to stabilise small banks and garden areas. The square footprint fits neatly into corners and tight sites.
The 75 x 75 mm mesh securely retains rock fill while allowing excellent drainage, reducing hydrostatic pressure behind walls. For best results, use angular rock larger than the mesh opening to create a stable, attractive face.
Install on a level, well-compacted base. Brace as required, fill in layers, and close securely with suitable ties or clips. Where soil contacts the basket, add a geotextile separator to prevent fines migration. Minimal maintenance is needed beyond periodic checks and top-up after settlement.
GABKITSET2028S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 750mm
- Width
- 750mm
- Height
- 525mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.28
- Weight with rock (approx)
- 506 kg
- Supplied As
- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845002079
