Gabion 1500mm x 525mm x 300mm H, 75x75mm, AL-TEN

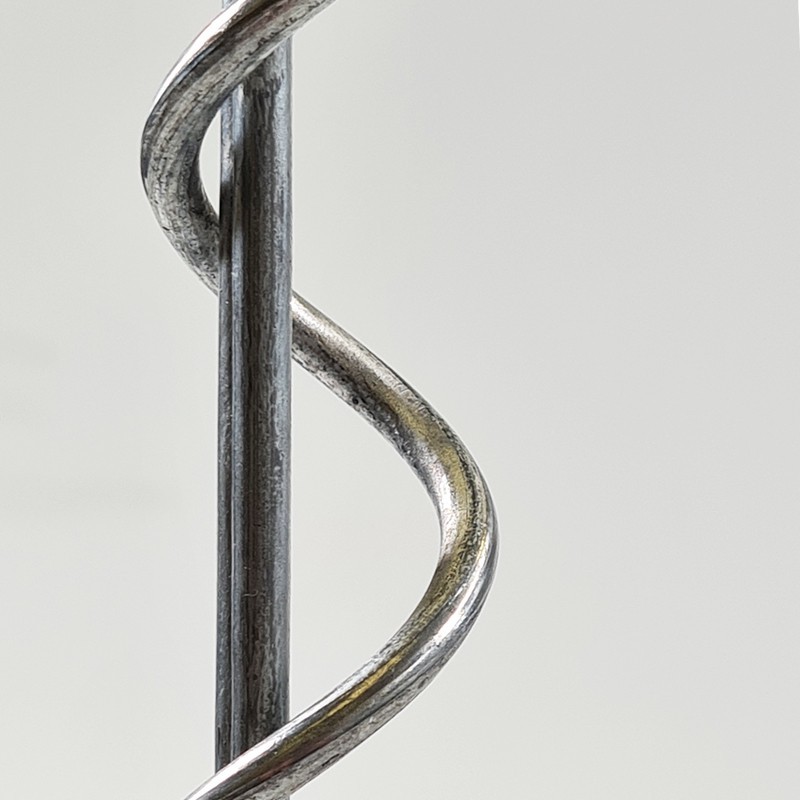

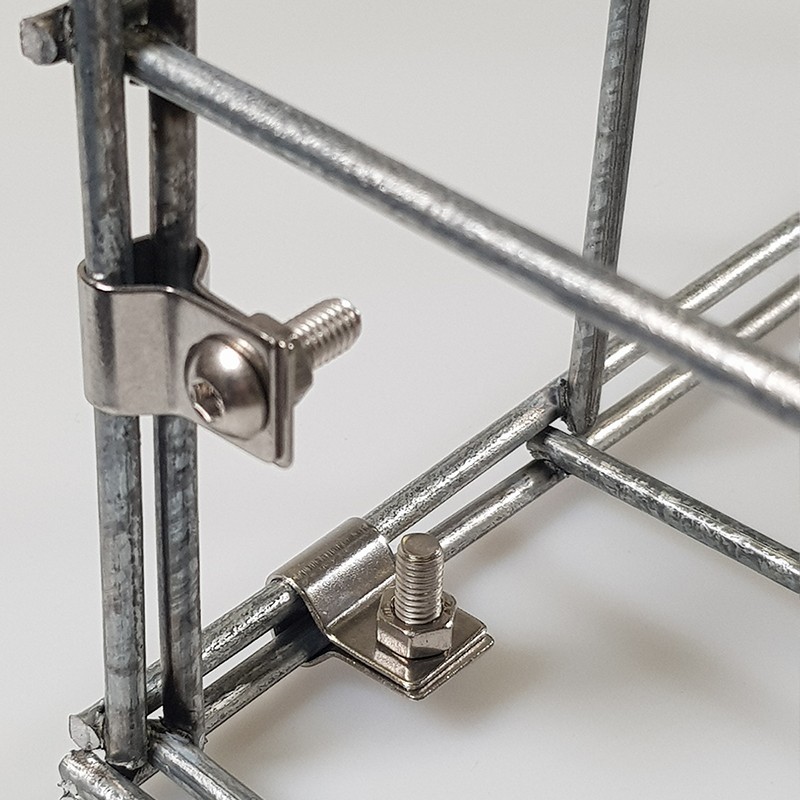

After assembly gabion cage is 1500mm Length x 525mm Width x 300mm Height (measured from centre of wire) x 4mm diameter. Select Spiral or Nikolock connectors. Alternatively hog ring type connectors are available, please contact us.
Connection Types
AL-TEN
Gabion 1500mm x 525mm x 300mm H, 75x75mm, AL-TEN
Previous
Gabion 1500mm x 300mm x 975mm H, 75x75mm, AL-TEN
Next
Gabion 1500mm x 525mm x 525mm H, 75x75mm, AL-TEN
Rating:
(0)
$111.80
Tax included
GABKITSET2087S
After assembly gabion cage is 1500mm Length x 525mm Width x 300mm Height (measured from centre of wire) x 4mm diameter. Select Spiral or Nikolock connectors. Alternatively hog ring type connectors are available, please contact us.
Connection Types
AL-TEN
Kitset includes panels: 2 of 1500mm x 525mm, 2 of 1500mm x 300mm, 3 of 525mm x 300mm. Stiffeners: 4 of 530mm (cross braces). AL-TEN is wire coated with a minimum of 290 grams of 10% Aluminium and 90% Zinc.
If spirals kitset contains: Spirals 8 of 0.75m (to be used at 1.5m length), 6 of .5m, 6 of .3m
If using Nikolock space a minimum of every 3 apertures. If using hog rings space a minimum of every 2 apertures.
Gabion kitset is supplied unassembled in a box or pallet depending upon quantity.
Important:
Always consider the stability of the wall you're constructing and whether internal reinforcing may be required. If the gabion is used for retaining you may need to ensure there is proper anchoring into the slope to prevent collapse, for example geogrids and earth anchors are often used. Check with an engineer for advice as soil type and other factors must be considered.
For free standing walls you may wish to reinforce the wall to a concrete foundation.
GABKITSET2087S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 1500mm
- Width
- 525mm
- Height
- 300mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.225
- Weight with rock (approx)
- 404 kg
- Shipping Label
- Large Item
Specific References
- EAN13
- 9352845002413
