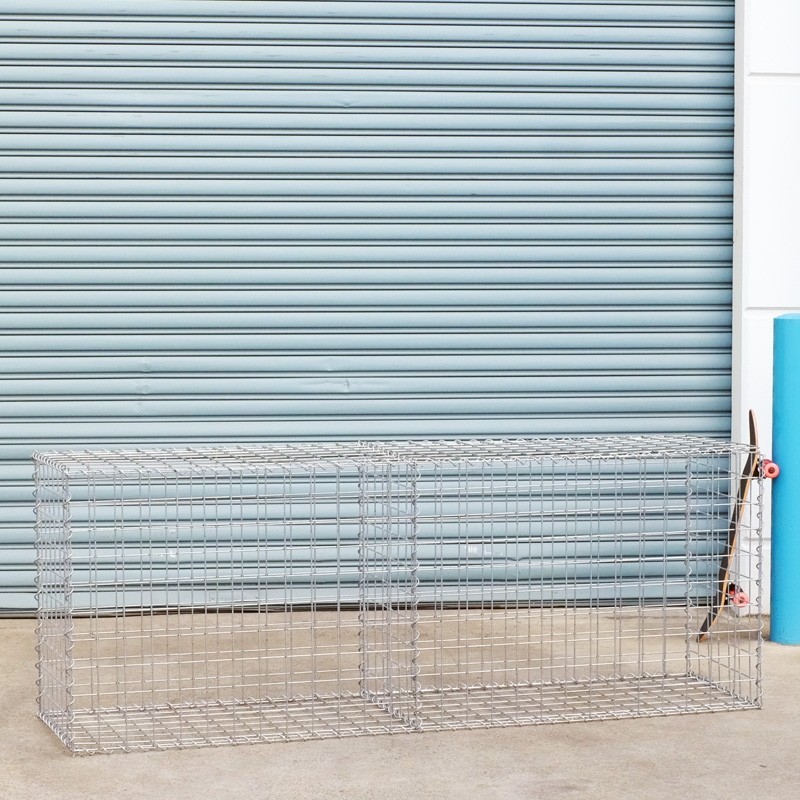

Gabion 1950mm x 525mm x 750mm H, 75x75mm, AL-TEN
Heavy-duty gabion basket measuring 1950 x 525 x 750H with 75x75mm mesh. AL-TEN aluminium-zinc alloy coated steel offers long-term corrosion resistance for retaining and landscaping.
Gabion 1950mm x 525mm x 750mm H, 75x75mm, AL-TEN
Previous
Gabion 1950mm x 525mm x 525mm H, 75x75mm, AL-TEN
Next
Gabion 1950mm x 525mm x 975mm H, 75x75mm, AL-TEN
$201.44
Tax included
GABKITSET2053S
Heavy-duty gabion basket measuring 1950 x 525 x 750H with 75x75mm mesh. AL-TEN aluminium-zinc alloy coated steel offers long-term corrosion resistance for retaining and landscaping.
This gabion measures 1950 mm (L) x 525 mm (W) x 750 mm (H) with a 75 x 75 mm mesh aperture. It is made from AL-TEN aluminium-zinc alloy coated steel for enhanced durability and corrosion resistance in demanding environments.
Use it to build low retaining structures, garden walls, erosion control features, privacy screens, and architectural accents. The rigid, rock-filled unit provides mass, stability, and free-draining performance without the need for mortar.
Supplied flat-packed for efficient transport and handling, the basket is assembled on site using standard gabion tying methods. Its modular footprint allows neat alignment and stacking with adjacent units for continuous runs.
For best results, place on a level, compacted base. Fill with hard, angular rock sized to suit the 75 mm mesh aperture, and use geotextile separation behind soil where required to reduce fines migration.
GABKITSET2053S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 1950mm
- Width
- 525mm
- Height
- 750mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.803
- Weight with rock (approx)
- 1446 kg
- Supplied As
- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845001515
