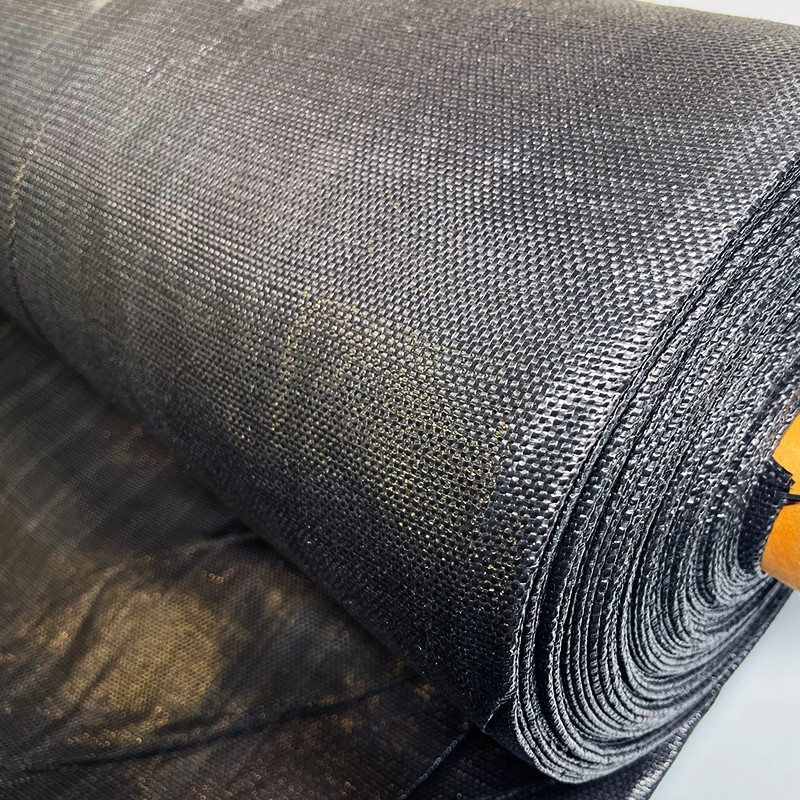

Mudstop Geotextile Fabric 4m x 25m (165gsm) Woven

Suitable for soft soil reinforcement and for unpaved roads between earth and aggregate.

MECHANICAL

Polymer Type - PP

Mass per Unit Area (AS 3706.1): 165 g/m2

Grab Tensile Strength (AS 3706.2 B Dry): 1300 N (MD) x 1000 N (TD)

Elongation (AS 3706.2 B Dry): 21 (MD) x 19 (TD)

Wide Width Tensile Strength (AS 3706-2 A Dry) 35 kN/m (MD) x 28 kN/m (TD)

Wide Width Elongation (AS 3706-2 A Dry) > 15 %

Trapezoidal Tear (AS 3706-3 Dry) 500 N (MD) x 450 N (TD)

CBR Burst (AS 3706-4 Dry) 4500 N

HYDRAULIC

Apparent Opening Size (AOS) (AS 3706.7) 0.15 mm

Water Flow Rate (100mm head) (AS 3706.9) >8 litres/m2/sec

ENDURANCE

UV Resistance (Retained @ 500 hrs) (ASTM D 4355)  90 %

Values are Typical = Mean or Average Value of all test data.

Note: MD = Machine Direction, TD = Transverse Direction
