Mudstop Geotextile Fabric 4m x 100m (165 gsm) Woven
Mudstop Geotextile Fabric 4m x 100m (165 gsm) Woven
Full stock
Rating:
(0)
$560.25
Tax included
Geotextile (woven)
11MUD4100FOLD.2

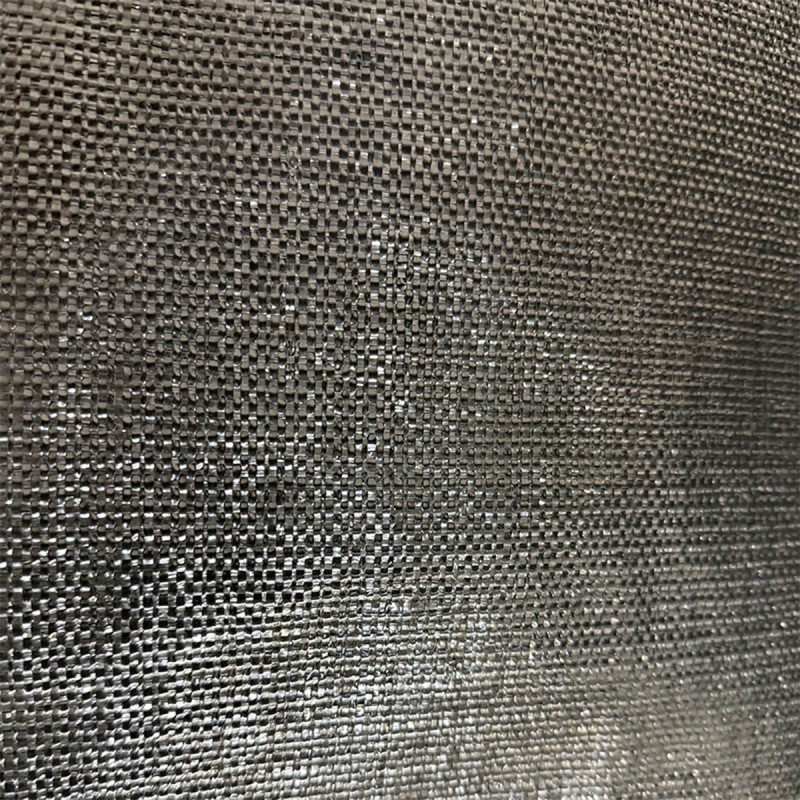

A medium weight, black UV stabilised woven geotextile used for separation and ground reinforcement. 165 grams per metre square.

This item is 4m wide (folded), so the physical roll size is 2m and you need to roll out and unfold. The 2m physical width is easier to handle and ship. Note: the physical weight is 66kg and the roll diameter is 40cm.

Brochure and physical properties

Quantity
In Stock

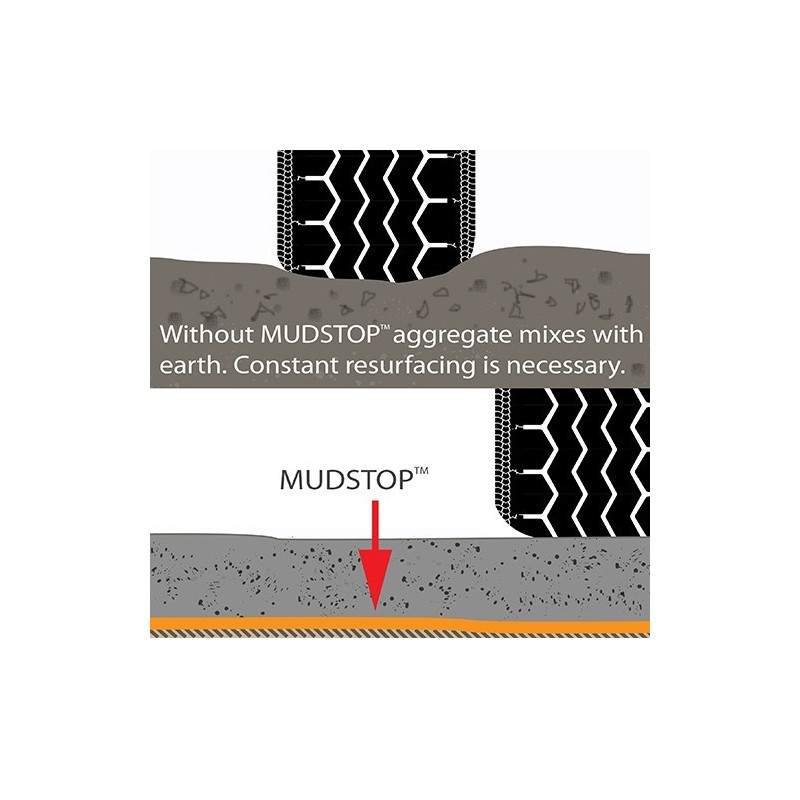

Suitable for soft soil reinforcement and for unpaved roads between earth and aggregate.

MECHANICAL

Polymer Type - PP

Mass per Unit Area (AS 3706.1): 165 g/m2

Grab Tensile Strength (AS 3706.2 B Dry): 1300 N (MD) x 1000 N (TD)

Elongation (AS 3706.2 B Dry): 21 (MD) x 19 (TD)

Wide Width Tensile Strength (AS 3706-2 A Dry) 35 kN/m (MD) x 28 kN/m (TD)

Wide Width Elongation (AS 3706-2 A Dry) > 15 %

Trapezoidal Tear (AS 3706-3 Dry) 500 N (MD) x 450 N (TD)

CBR Burst (AS 3706-4 Dry) 4500 N

HYDRAULIC

Apparent Opening Size (AOS) (AS 3706.7) 0.15 mm

Water Flow Rate (100mm head) (AS 3706.9) >8 litres/m2/sec

ENDURANCE

UV Resistance (Retained @ 500 hrs) (ASTM D 4355)  90 %

Values are Typical = Mean or Average Value of all test data.

Note: MD = Machine Direction, TD = Transverse Direction

Mudstop
11MUD4100FOLD.2

Data sheet

Primary Applications
separation, stabilisation
Weight
165gsm
Unit of Measure
roll
Product
woven geotextile
Colour
black
Shipping Label
Large Item

Specific References

EAN13
9352845006749
Full stock
