Gabion 5mm, 975mm L X 525mm W X 975mm H, 75X75mm, AL-TEN
Heavy-duty gabion made from 5mm aluminium-zinc coated steel with 75x75mm mesh. Size 975 x 525 x 975 mm (approx. 0.50 m³) for compact walls, pillars and landscape features.
Gabion 5mm, 975mm L X 525mm W X 975mm H, 75X75mm, AL-TEN
Previous
Gabion 5mm, 975mm L X 525mm W X 525mm H, 75X75mm, AL-TEN
Next
Gabion 5mm, 975mm L X 975mm W X 525mm H, 75X75mm, AL-TEN
$188.90
Tax included
GABKITSET6006S
Heavy-duty gabion made from 5mm aluminium-zinc coated steel with 75x75mm mesh. Size 975 x 525 x 975 mm (approx. 0.50 m³) for compact walls, pillars and landscape features.

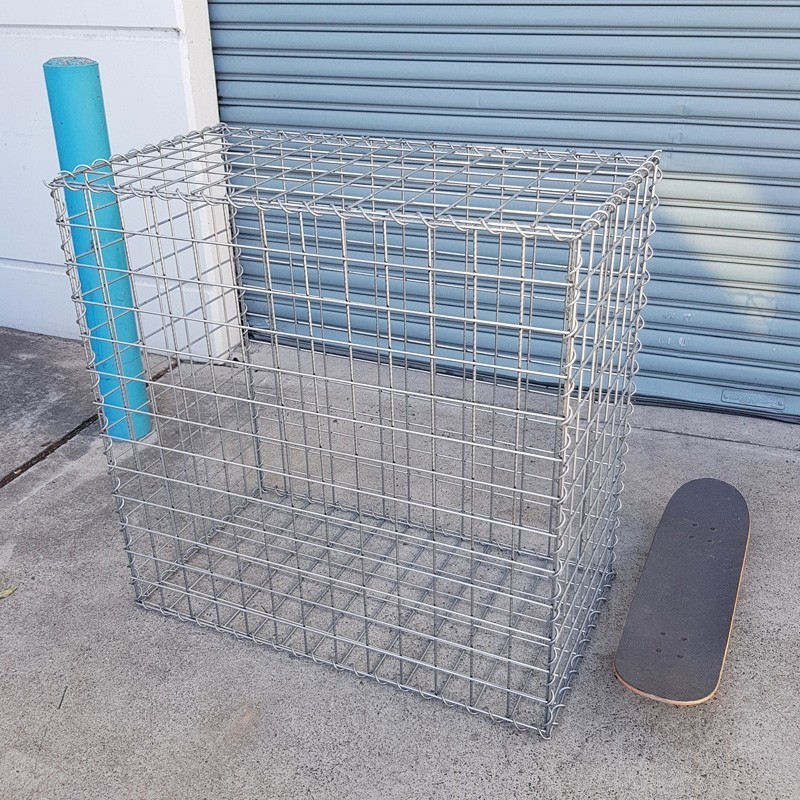

This heavy-duty gabion cage measures 975 mm (L) x 525 mm (W) x 975 mm (H) with a 75 x 75 mm mesh aperture. Constructed from 5 mm wire in AL-TEN aluminium-zinc coated steel, it is designed for long-lasting performance in landscaping and structural applications.
The 5 mm wire diameter and 75 mm grid provide strong panel rigidity and a clean, uniform finish. The AL-TEN coating delivers durable corrosion resistance for outdoor use across a wide range of environments.
Supplied flat for on-site assembly, the unit is installed on a level, stable base and secured with appropriate lacing wire or spirals as specified for your project. Fill with clean, angular stone larger than the mesh opening and brace corners and mid-panels during filling. Approximate internal volume: 0.50 m³.
Use individually as a column, seat base or feature, or combine multiple units to create low retaining walls, edging, and screens. Where the gabion sits against soil, consider a suitable geotextile separator to help prevent fines migration.
GABKITSET6006S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 975mm
- Width
- 525mm
- Height
- 975mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.505
- Weight with rock (approx)
- 909 kg
- Supplied As
- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845003731
