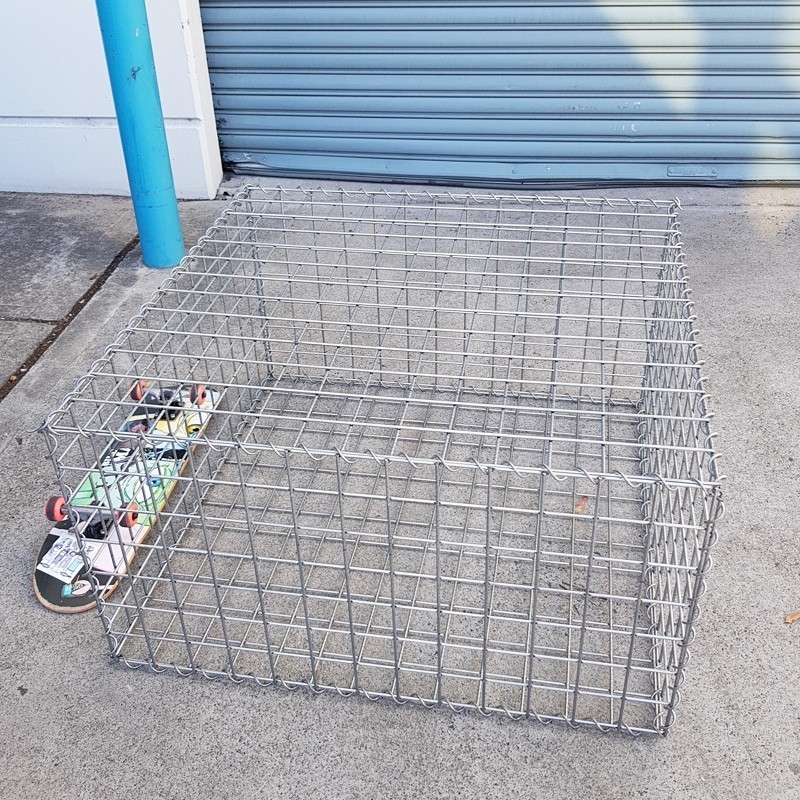

Gabion 5mm, 975mm L X 975mm W X 525mm H, 75X75mm, AL-TEN
Heavy-duty gabion basket built from 5 mm wire mesh with a 75x75 mm aperture, sized 975 x 975 x 525 mm. AL-TEN aluminium-zinc alloy coating delivers strong corrosion resistance for long service life. Approximate fill capacity 0.5 m3.
Gabion 5mm, 975mm L X 975mm W X 525mm H, 75X75mm, AL-TEN
Previous
Gabion 5mm, 975mm L X 525mm W X 975mm H, 75X75mm, AL-TEN
Next
Gabion 5mm, 975mm L X 975mm W X 975mm H, 75X75mm, AL-TEN
$184.34
Tax included
GABKITSET6007S
Heavy-duty gabion basket built from 5 mm wire mesh with a 75x75 mm aperture, sized 975 x 975 x 525 mm. AL-TEN aluminium-zinc alloy coating delivers strong corrosion resistance for long service life. Approximate fill capacity 0.5 m3.
This gabion measures 975 L x 975 W x 525 H mm and is constructed from robust 5 mm wire mesh with a 75x75 mm aperture. The compact footprint suits retaining details, planter bases, steps, and landscape features.
An AL-TEN (aluminium-zinc alloy) coating enhances corrosion resistance compared to standard galvanizing, supporting performance in coastal, drainage, and high-moisture environments. The 5 mm wire provides rigidity to maintain line and profile under load.
When filled with suitably graded rock larger than the mesh aperture, the basket forms a free-draining, stable mass. The internal volume is approximately 0.5 m3, aiding accurate material estimation and logistics planning.
Designed for straightforward assembly and integration with other gabion units of matching depth or height. Use appropriate lacing or fastening methods and ensure a level, well-prepared base for best results.
GABKITSET6007S
Data sheet
- Material Type
- AL-TEN (Galfan Plus)
- Pitch
- 75mm x 75mm (square)
- Length
- 975mm
- Width
- 975mm
- Height
- 525mm
- Gabion Type
- Gabion Cage (kitsets)
- m3
- 0.505
- Weight with rock (approx)
- 909 kg
- Diameter
- 5mm
- Supplied As
- Flat Pack including spirals (or Nikolock if selected) and braces. See installation guide for detail
Specific References
- EAN13
- 9352845003748
